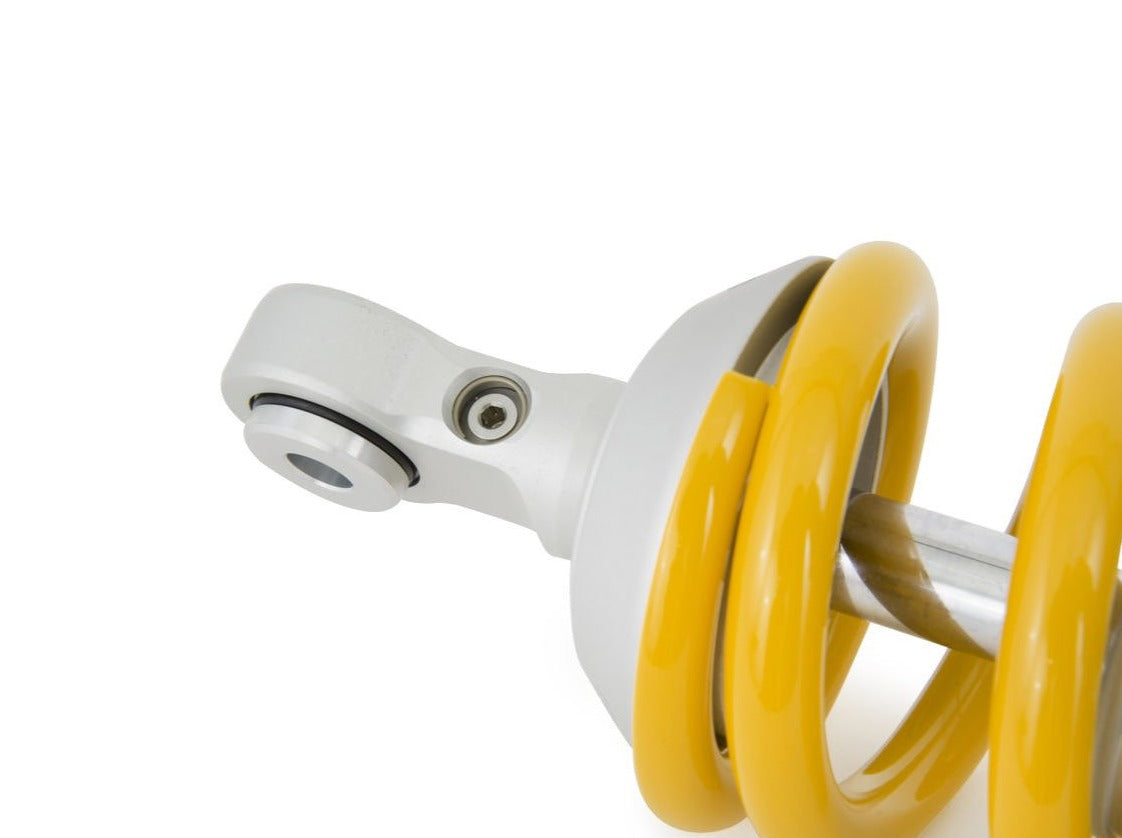

    SU509 - ÖHLINS Suzuki GSX-S1000 / Katana Rear Shock Absorber
    SU509 - ÖHLINS Suzuki GSX-S1000 / Katana Rear Shock Absorber

    SU509 - ÖHLINS Suzuki GSX-S1000 / Katana Rear Shock Absorber

    Regular price €799,00 €0,00 Unit price per
    Shipping calculated at checkout.

    Rear shock absorber by Öhlins for Suzuki GSX-S1000 / GSX-S1000S Katana.

    The STX 46 Street is based on the popular 46 mm shock absorber with divided piston and adjustable rebound damping, developed for naked sports bikes and street performance bikes. It features a large 46 mm main piston and an internal gas reservoir within the main body of the shock.

    With adjustable damping you can change the behavior of the shock to suit your taste and even fit a hydraulic spring pre loader to change the stance of the bike. This is the perfect choice for the naked sports bike, or as well call it: Street Performance Line.

    📜 Owner's manual

    🛠 Instructions for installation

    Length: 328 mm
    Stroke: 63 mm
    Rate N/mm: 105 N/mm
    Mounted spring: 01092-36

    Type Code: S46DR1B

    Single tube S: Single tube

    Piston diameter 46: Piston diameter: 46 mm

    Öhlins Motorcycle type D D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body.

    Öhlins Motorcycle R1 rebound damping adjuster R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

    Öhlins Motorcycle B B: Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster.


    Suzuki GSX-S1000 (2015 – )

    Suzuki GSX-S1000S Katana (2019 – )
