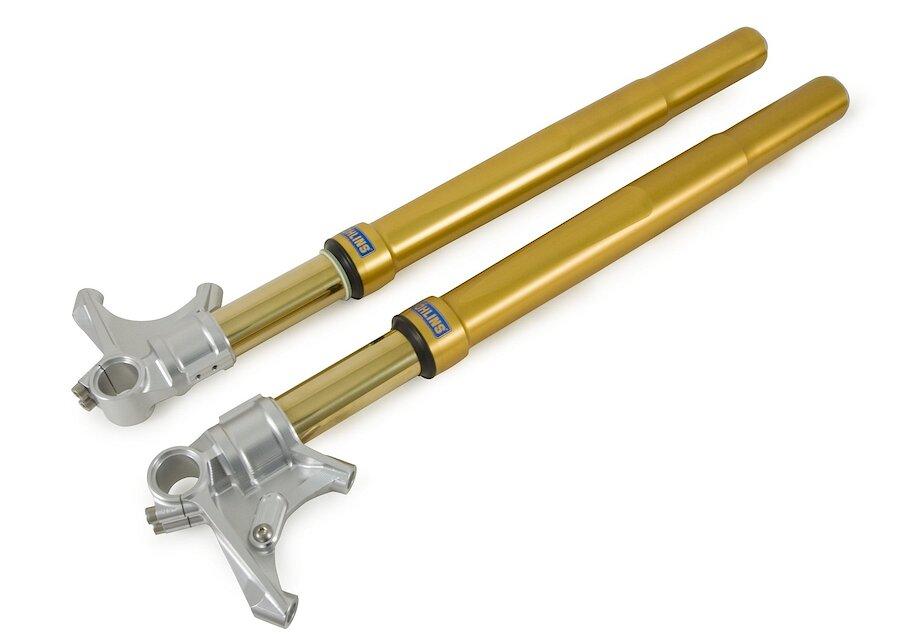

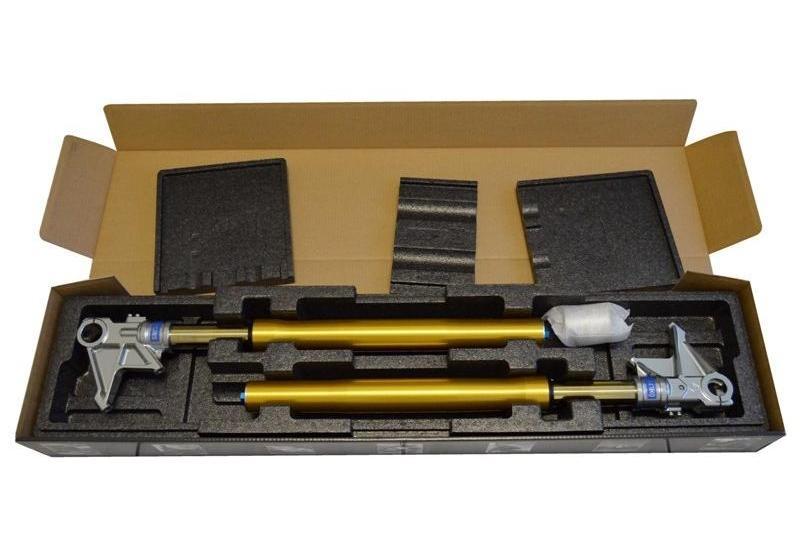

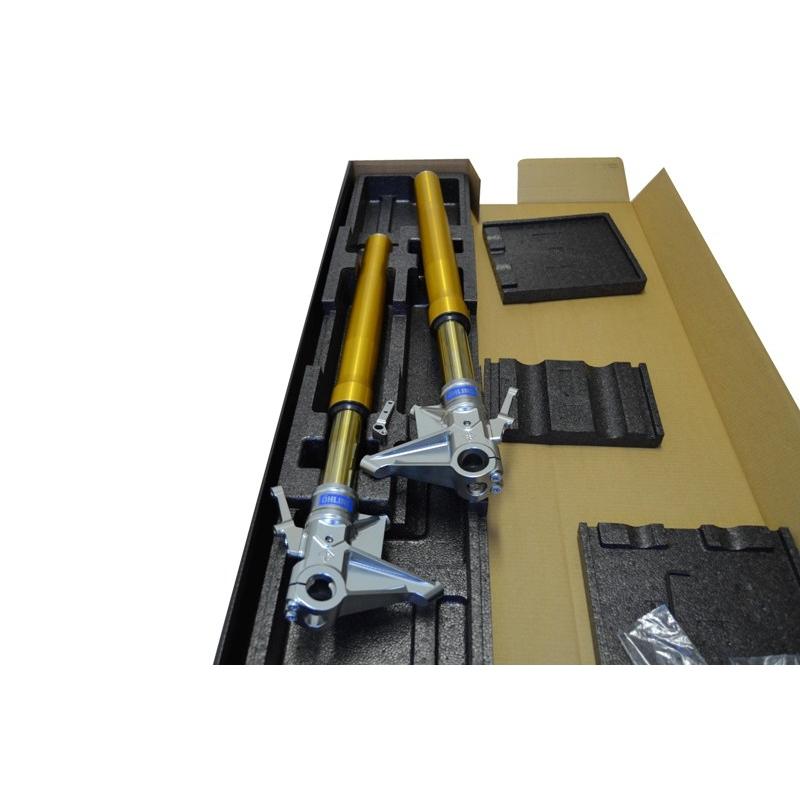

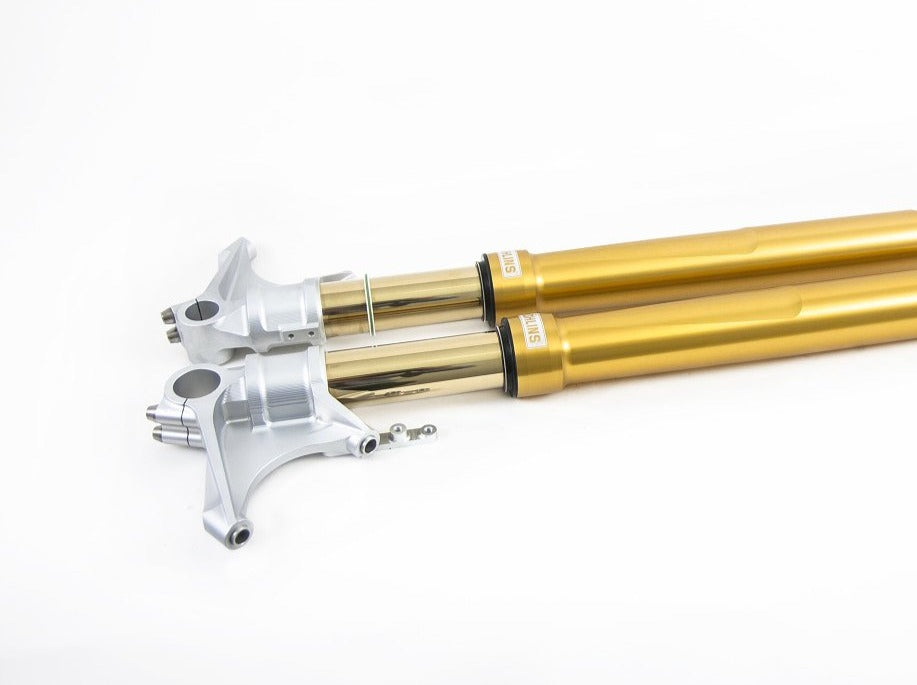

FGRT231 - ÖHLINS Ducati Panigale Front Fork (Road & Track; Upside Down)

The new Road & Track front fork will give you loads of performance, stable damping and fantastic comfort. The new Road & Track front fork features the Ohlins 30 mm Cartridge Kit inside, a winning kit in several national Superbike championships.

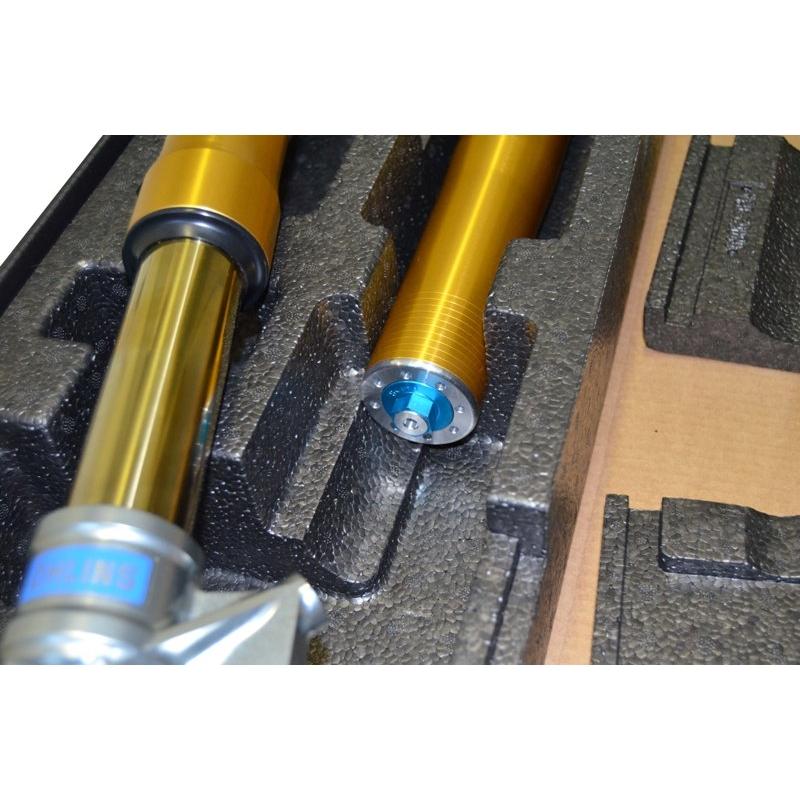

Compression and rebound adjustments are easily done with compression adjustment in one leg and rebound adjustment in the other leg.

The new front fork gives a big improvement in tire feel, brake support and the general handling of the bike. The outer design has been redesigned to make this front fork even more attractive.

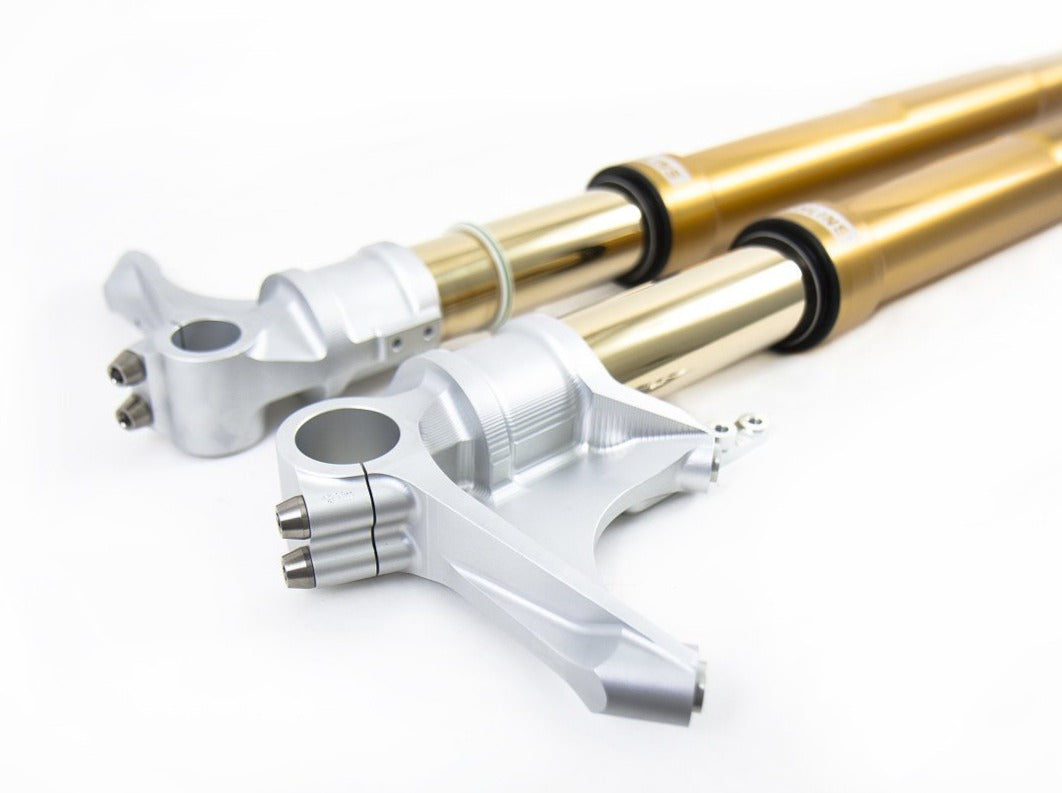

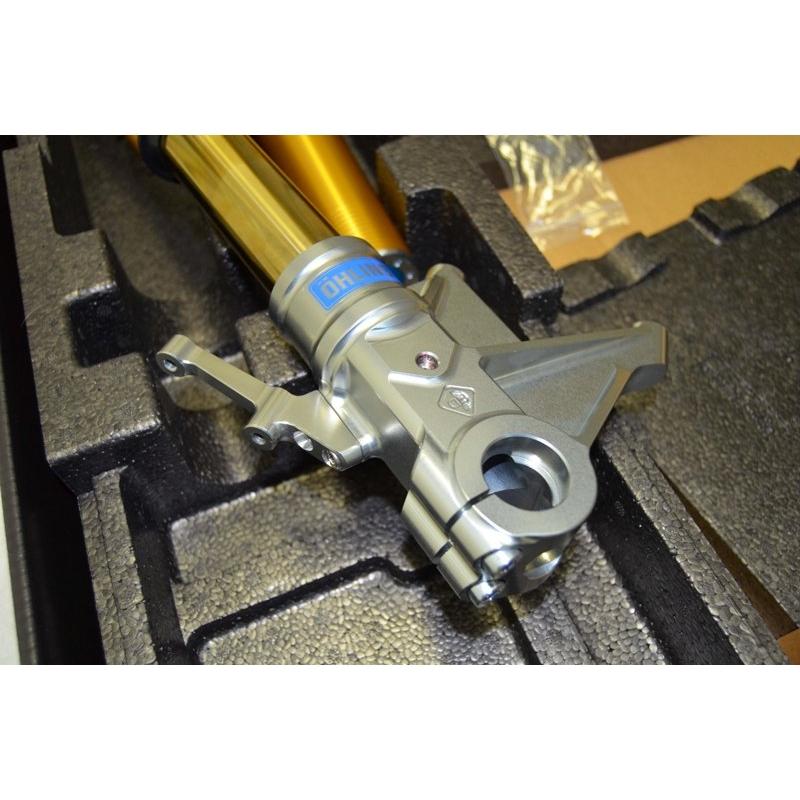

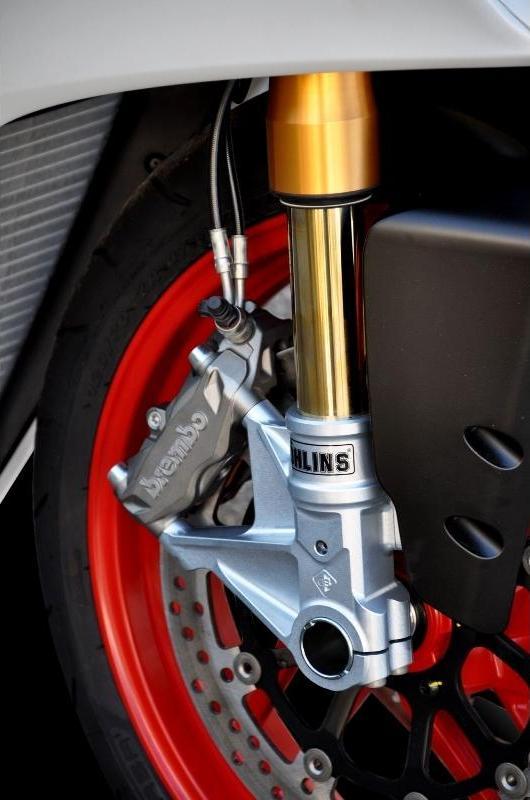

CNC machined of billet aluminium, 3D technology, complete with front fender attachments and ABS sensor.

Diameter 43 mm. Adjustable in extension and compression stroke 120 mm.

📜 Owner's manual

🛠 Instructions for installation

Technical data:

• Length: 740 mm
• Stroke: 120 mm
• Rate N/mm: 10,0 N/mm
• Position: front
• Mounted spring: 04744-10
• Spring series: 04744-Serie
• Oil level mm: 150 mm

APPLICATION:

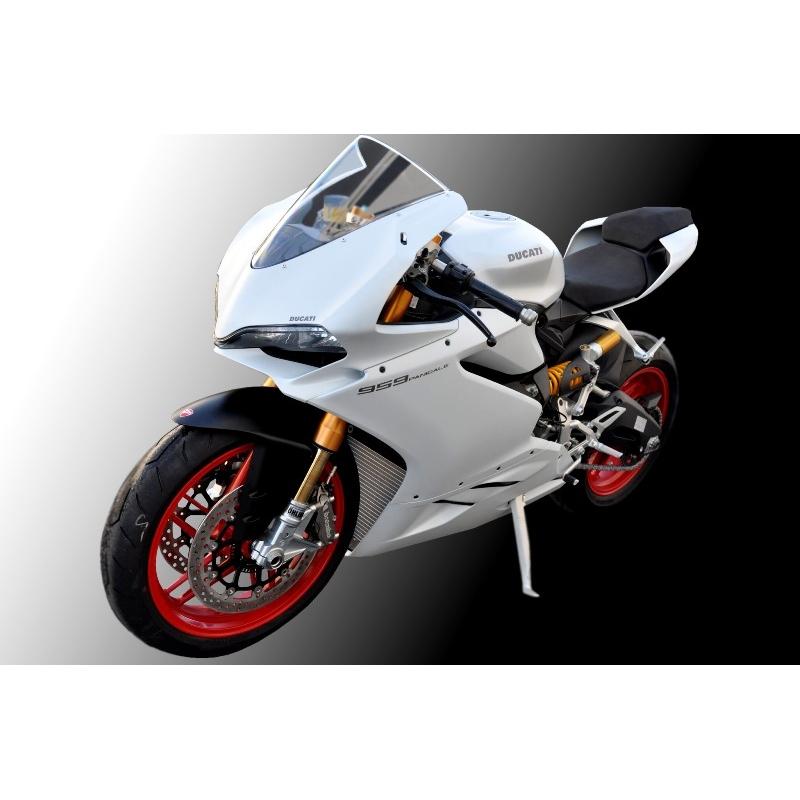

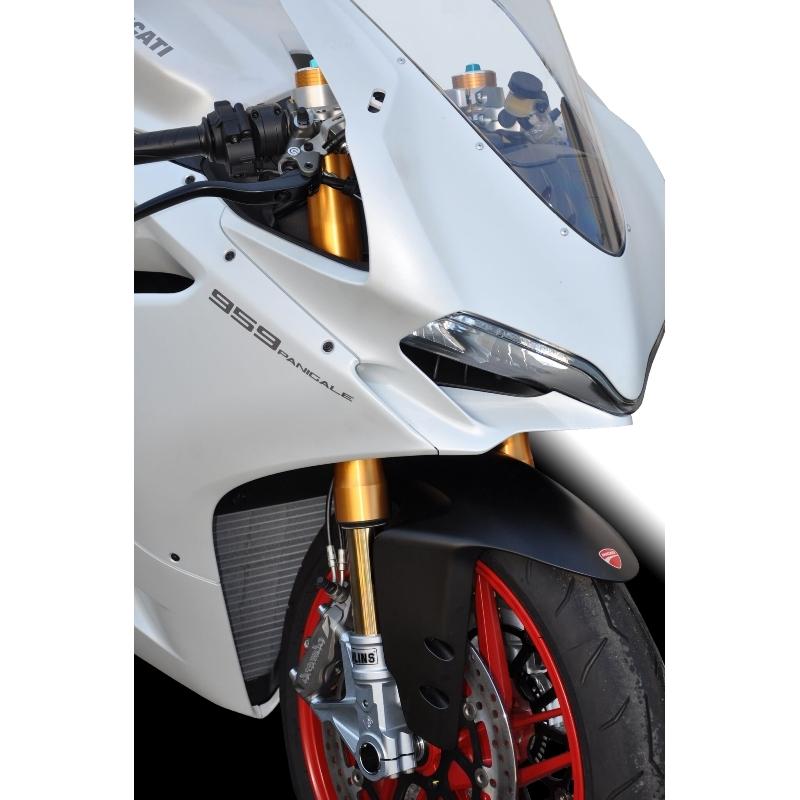

Ducati 899 PANIGALE (2014 – 2015)

Ducati 959 PANIGALE (2016 – 2019)

Ducati PANIGALE V2 (2020 – 2022)

Ducati PANIGALE V4 (2018 – 2022)
