FG620 - ÖHLINS BMW R nineT (16/20) Front Fork
FG620 - ÖHLINS BMW R nineT (16/20) Front Fork

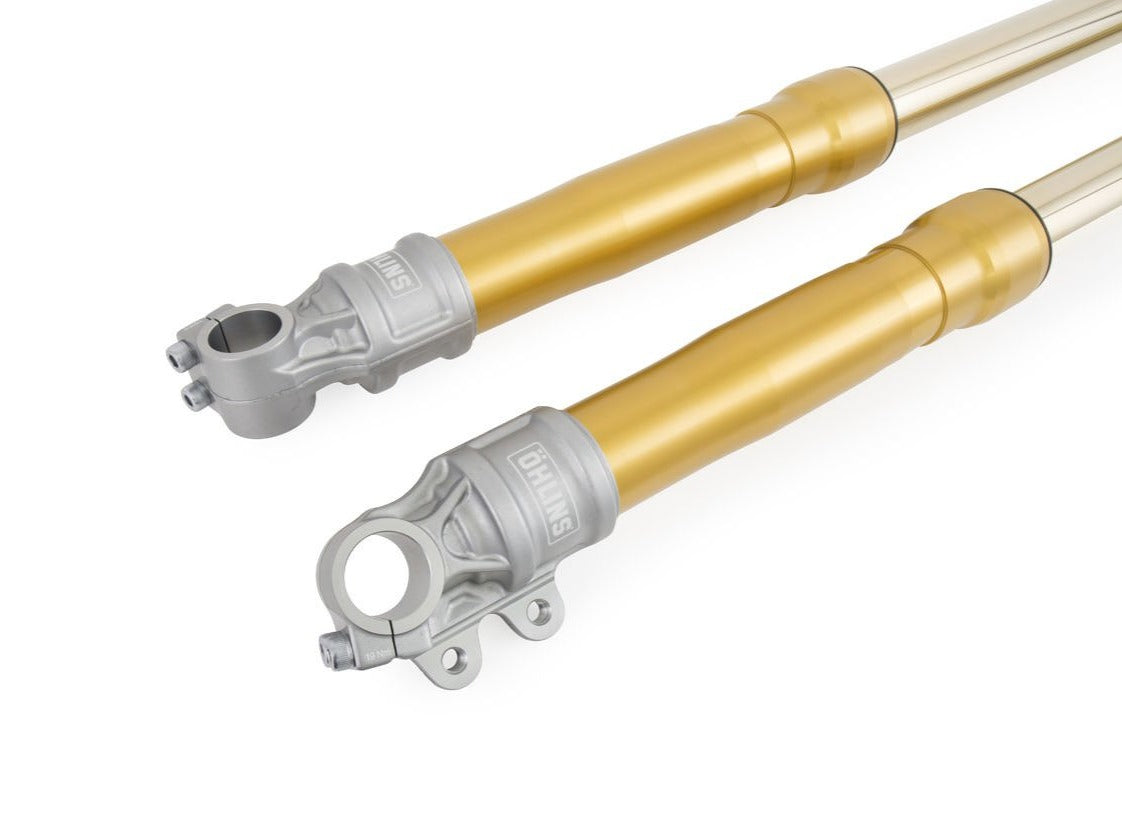

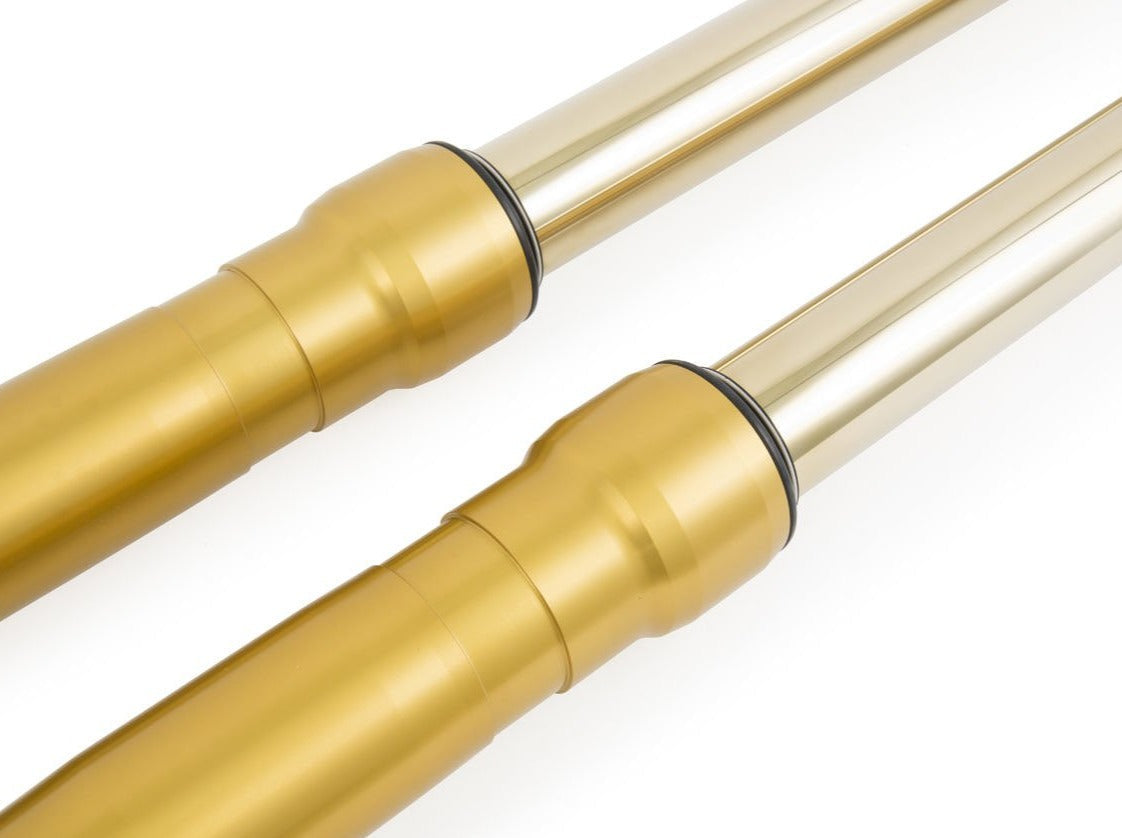

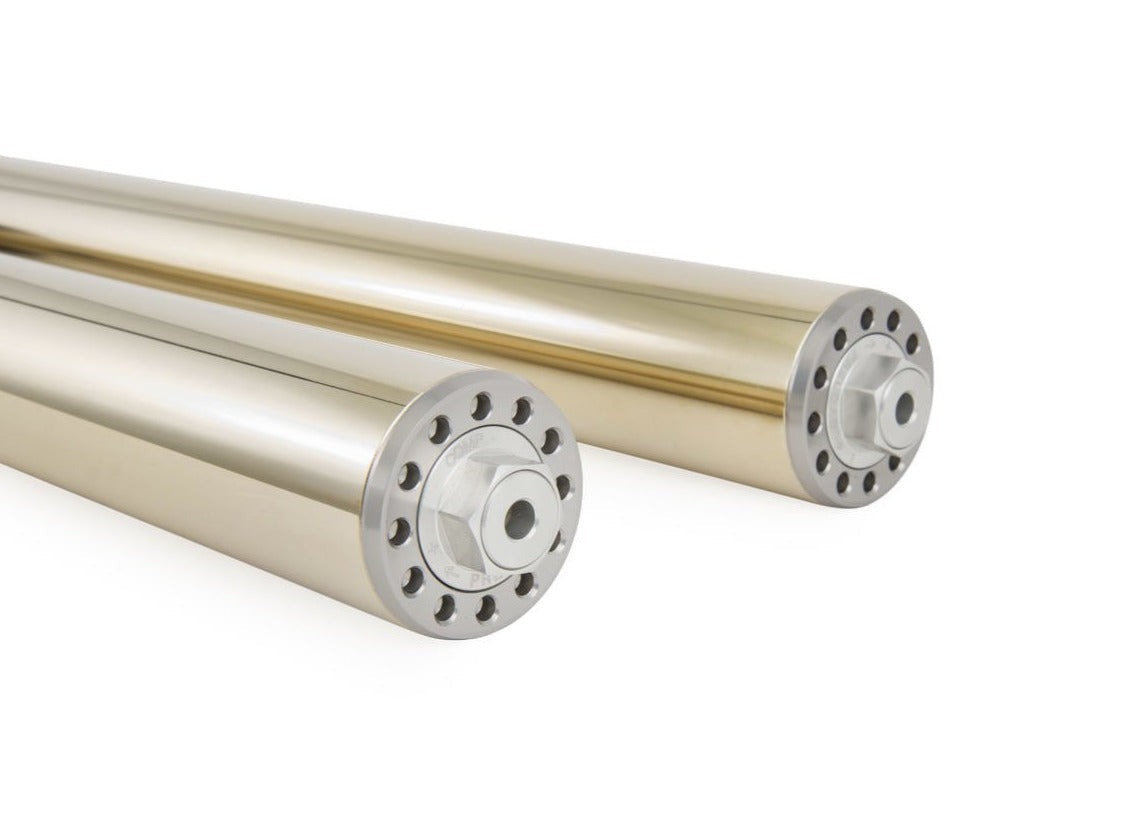

Front fork by Öhlins for BMW R nineT motorcycles.
Öhlins offers a 43 mm conventional universal fork for any custom builder that wants to give the bike supreme suspension yet classic style and at the same time get the familiar Öhlins Racing design. They are available in an Öhlins gold version as well as a black version. The technology in this fully adjustable fork has been proven through the years on numerous applications and works for a range of different applications. The fork gives the possibility to adjust spring preload as well as compression and rebound damping adjustment.

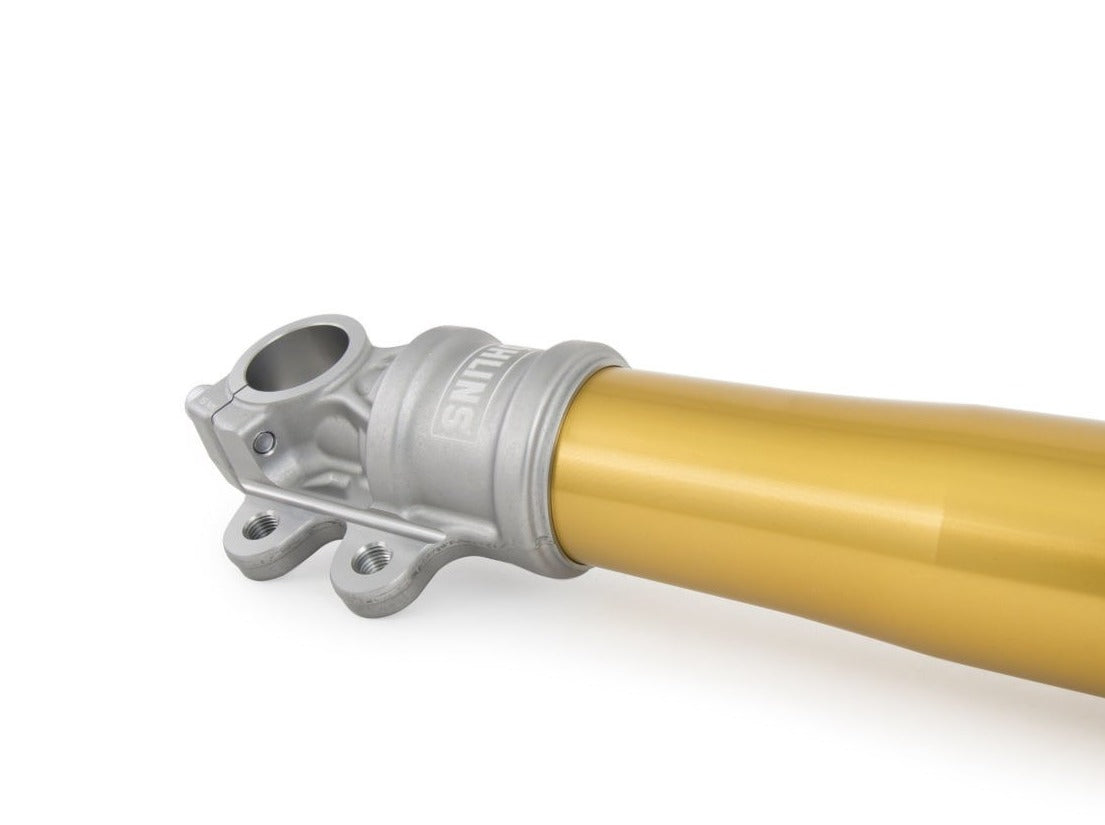

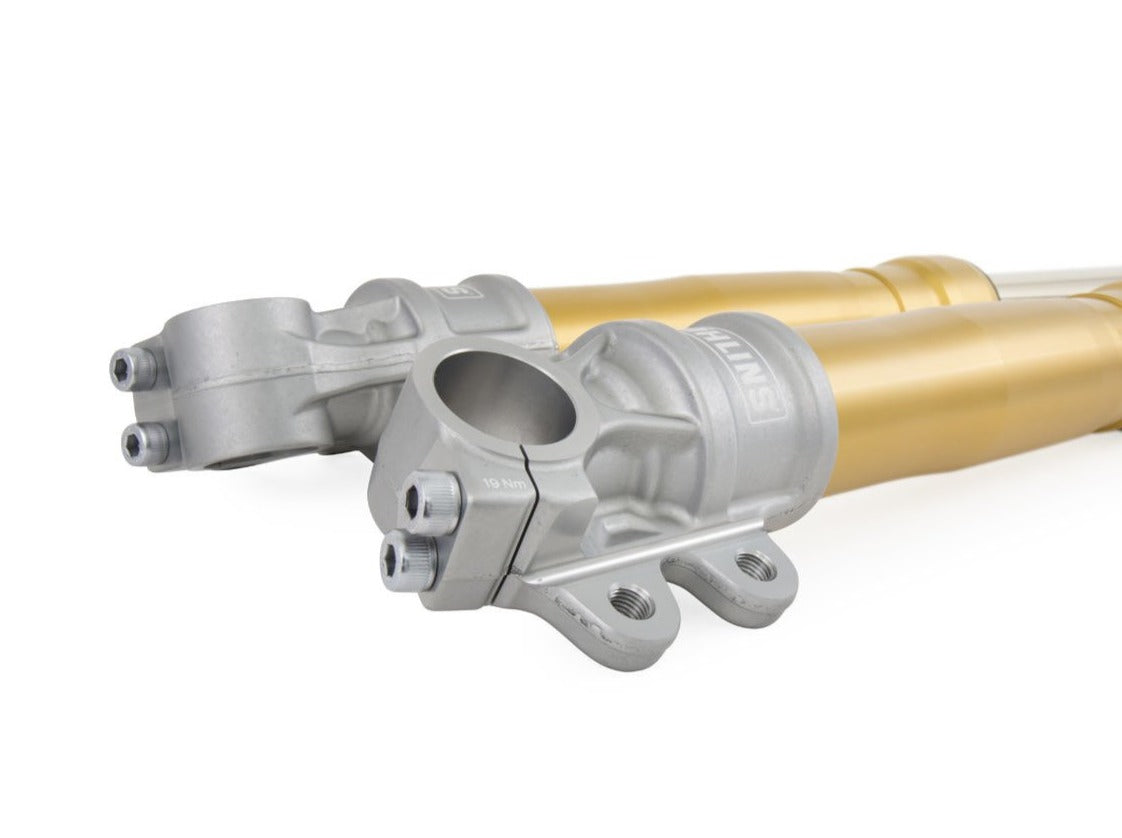

The fork bottoms come without brake caliper and fender mountings, this enables the fork to be easily adapted to various models.
🛠 Instructions for installation
Length: | 800 mm |
---|---|
Stroke: | 130 mm |
Rate N/mm: | 9,5 N/mm |
Position: | front |
Mounted spring: | 04744-95 |
Spring series: | 08790-xx |
Packaging unit: | pair |
APPLICATION:
BMW R nineT 1170 (2016 – 2020)
BMW R nineT Scrambler (2016 – 2020)
BMW R nineT Urban G/S (2016 – 2020)
BMW R nineT Pure (2016 – 2020)
BMW R nineT Racer (2016 – 2020)
