Performance Technology

BPR02 - PERFORMANCE TECHNOLOGY Yamaha Brake Plate Radiator

BPR02 - PERFORMANCE TECHNOLOGY Yamaha Brake Plate Radiator

Regular price €156,90 EUR
Regular price Sale price €156,90 EUR
Sale Sold out
(VAT not included)
Color

Made in Italy brake plate radiator by Performance Technology for Yamaha motorcycles.

The meticulous observation of the braking system's dynamics has given birth to the Brake Plate Radiator, particularly with thermal energy transformation during the brake action and with heat radiation spreading throughout close components. It has been observed that during last years braking systems have lost some balance characteristics they had already reached, for reasons such as: speed performance upgrades, spending review trend of the manufacturers, arrival of synthetic materials. Here lies the ambition of inventing a double function device that could, on one hand, reduce heat radiation coming from the pads towards clamp and oil, while on the other one, generate cooling for the pad in order to avoid sustained critical temperatures. Thus, there are special Hybrid Pads made of two parts: one produced with special thermal steel, the other consisting in a light-weight alloy with a high thermal-exchange rate.

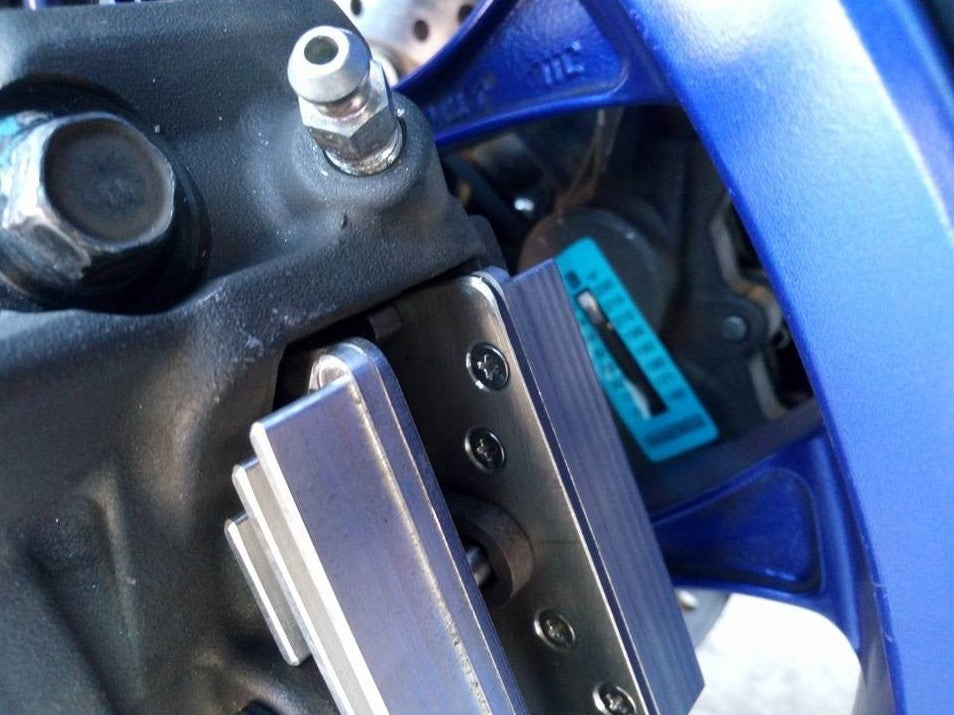

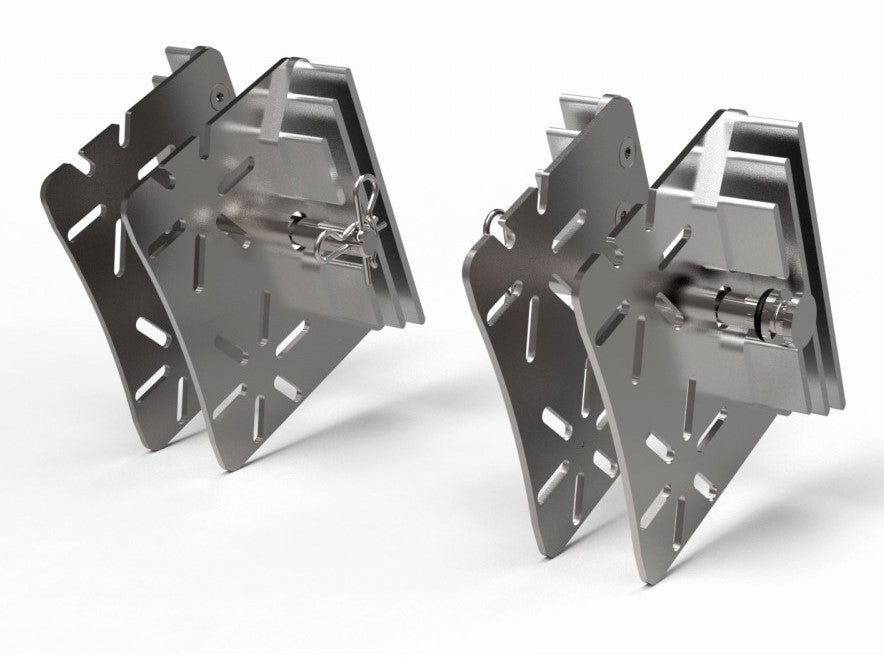

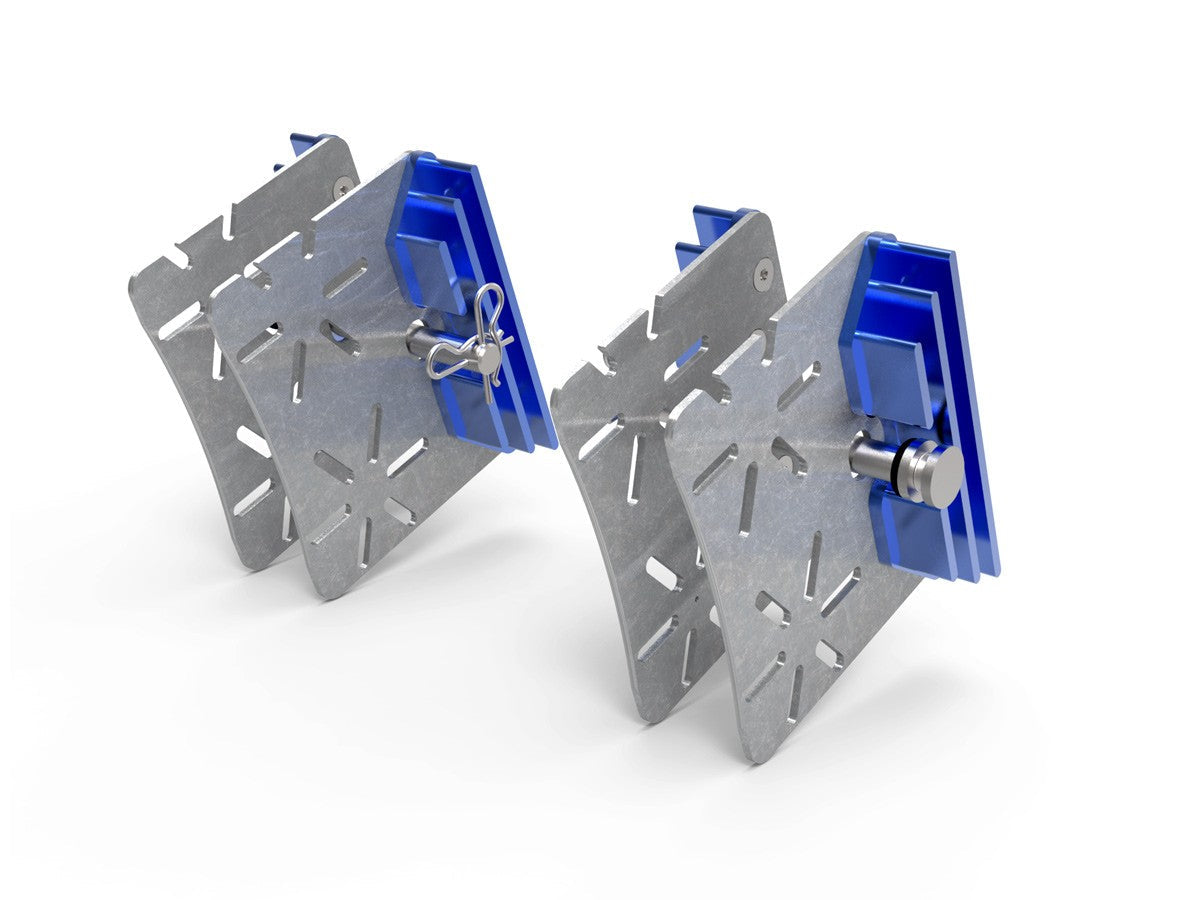

The project have been carried out after a year of testing and comparisons done right on track before the final version release. The heat sinks have been designed using two different metal elements to optimize the pad's thermal insulation by the caliper and the cooling thereof. The main body of the heat sink is made of thermal steel with a high degree of heat conductivity. The material is first laser cut and then CNC machined. The slots have two purposes: first is to reduce the contact surface, second - to release the hot air formed inside the brake piston cavity by reducing the hot chamber effect, as the propagation of heat in the piston and oil. The steel sink's main body is connected to a light alloy heat sink made of special aluminum with high thermal conductivity, which has the task of assisting the heat dissipation process.

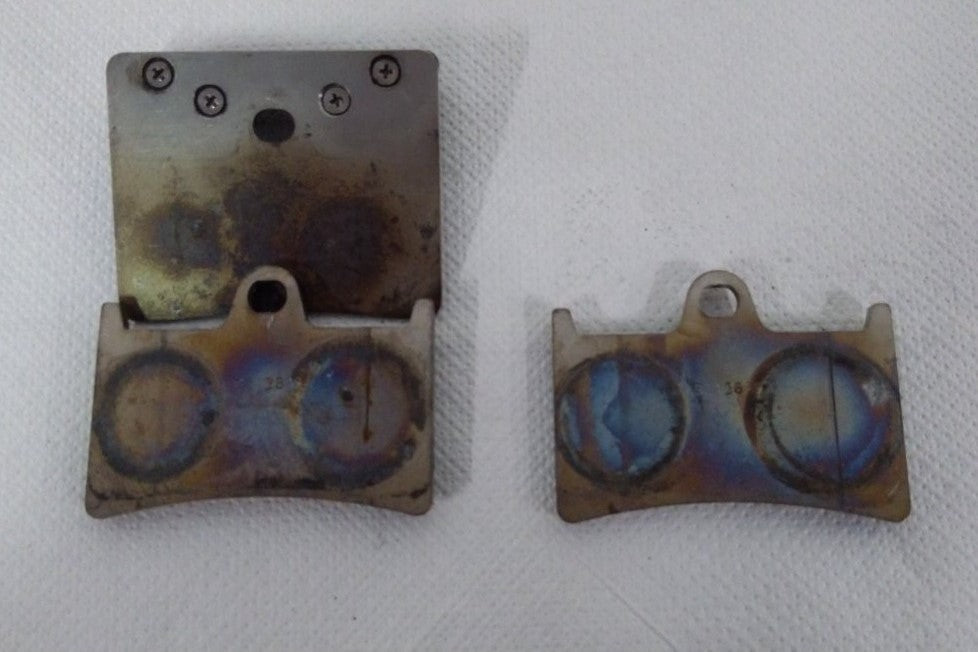

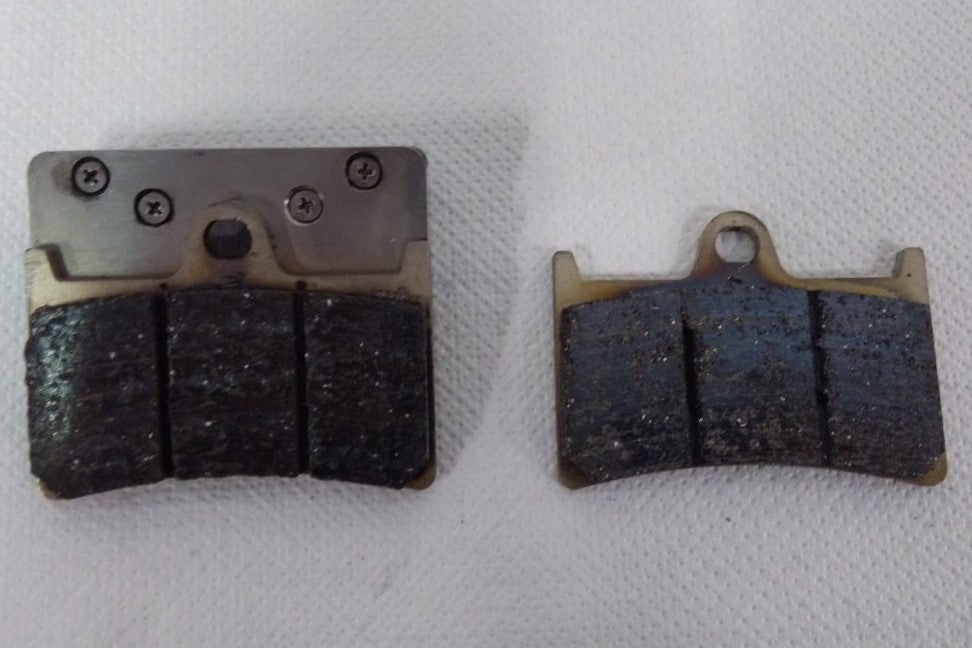

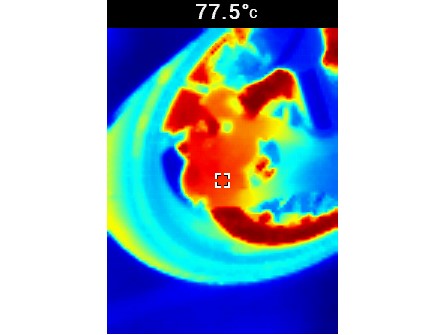

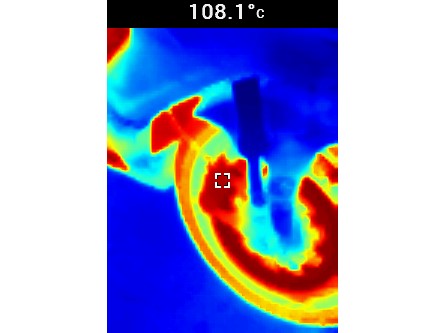

Tests have shown a reduction in the pad's temperature to a maximum of 20 degrees, substantial improvement in braking, incredible stability at braking start, optimum rollback value of pads resulting in a hot free wheel. Brake pads also have shown to have a longer life of 25% due to a less temperature burdensome usage.

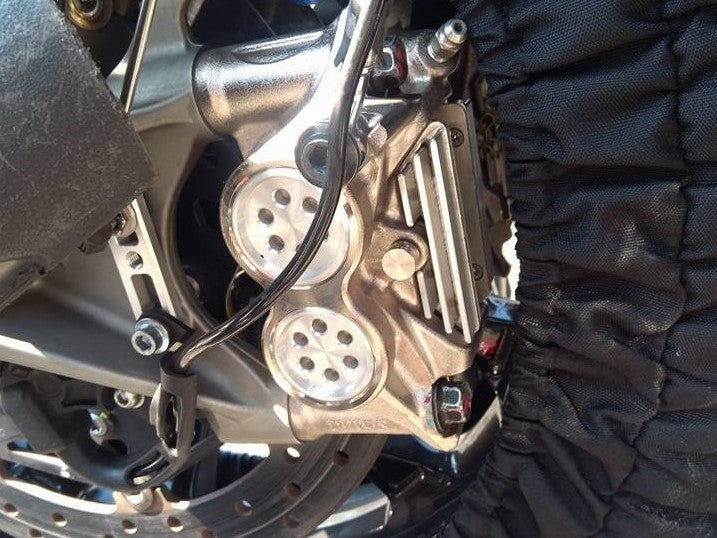

APPLICATION: BREMBO M4 + M50 + STILEMA

Yamaha BT BULLDOG 1100 (2002 – 2006)

Yamaha FJR ABS 1300 (2003 – 2005)

Yamaha FZ1 1000 (2006 – 2012)
Yamaha FZ1 Fazer 1000 (2006 – 2012)
Yamaha FZ1 Fazer 1000 ABS (2007 – 2012)

Yamaha FZ6S2 600 (2007 – 2009)
Yamaha FZ6S2 Fazer 600 (2007 – 2009)
Yamaha FZ6S2 Fazer ABS 600 (2008)

Yamaha FZ8N 800 (2011 – )
Yamaha FZ8NA 800 (2011 – 2012)
Yamaha FZ8S Fazer 800 (2011 – )
Yamaha FZ8SA Fazer 800 (2011 – )

Yamaha FZR R 250 (1989 – )
Yamaha FZR RR 400 (1991 – 1992)
Yamaha FZR SP 400 (1991 – )

Yamaha FZS Fazer 600 (1998 – 1999)
Yamaha FZS Fazer 600 SP (2000 – 2003)
Yamaha FZS Fazer 1000 (2001 – 2005)

Yamaha MT-01 1670 (2005 – 2006)

Yamaha MT-07 700 (2014 – 2016)
Yamaha MT-07 A 700 (2017 – )
Yamaha MT-07 Moto Cage 700 (2014 – 2015)

Yamaha MT-09 850 (2014 – 2016)
Yamaha MT-09 (MTN 850-A) 850 (2017 – 2020)
Yamaha MT-09 A Tracer 850 (2017 – 2020)
Yamaha MT-09 Sport Tracker 850 (2015 – 2020)
Yamaha MT-09 Street Rally 850 (2014 – 2020)
Yamaha MT-09 Tracer 850 (2015 – 2016)

Yamaha MT-10 1000 (2016 – 2018)

Yamaha MTT A Tracer (700) 690 (2016 – )

Yamaha T-MAX XP 500 (2008 – 2011)
Yamaha T-MAX ABS XP 500 (2008 – 2011)
Yamaha T-MAX SV XP 500 (2011)
Yamaha T-MAX SV ABS XP 500 (2011)
Yamaha T-MAX XP 530 (2012 – 2016)

Yamaha TDM 900 (2002 – 2014)
Yamaha TDM ABS 900 (2005 – 2007)

Yamaha TZR 125 (1993 – 1995)
Yamaha TZR (Reverse cylinder) 250 (1989 – 1990)
Yamaha TZR R / RS / SP 250 (1989 – 1995)

Yamaha XJR 1300 (1999 – 2011)
Yamaha XJR Racer 1300 (2015 – )
Yamaha XJR SP 1300 (2001)

Yamaha XSR 700 (2016 – 2017)
Yamaha XSR (850) 900 (2016 – 2017)

Yamaha XTZ Super Tenere 1200 (2010 – 2017)

Yamaha XV A Midnight Star 1900 (2006 – 2012)
Yamaha XV PC Road Star Warrior 1700 (2003 – 2005)
Yamaha XV Road Star Warrior 1700 (2002)
Yamaha XV Royals Star Warrior 1670 (2002 – )
Yamaha XV Warrior 1700 (2003 – 2004)

Yamaha YZF-R Thunder Ace 1000 (1996 – 2001)
Yamaha YZF-R Thunder Cat 600 (1996 – 2004)

Yamaha YZF-R1 (1998 – 2006)
Yamaha YZF-R1 (2015 – )
Yamaha YZF-R1M (2015 – )
Yamaha YZF-R1S (2016)

Yamaha YZF-R6 (1999 – )

Yamaha YZF-R7 (OW02) road version 750
